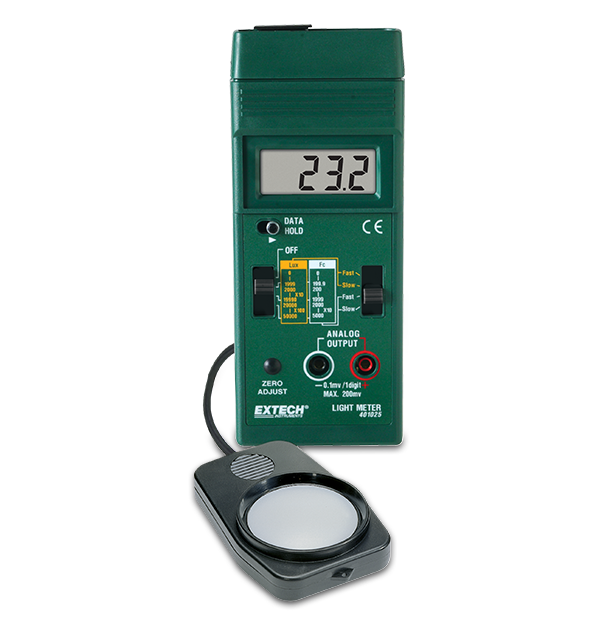

Extech 401025
Foot Candle/Lux Light Meter
401025 is a Foot Candle/Lux Meter which measures light level to 5000FC (foot-candles) and 50,000 Lux with a 5% accuracy using a precision photo diode and color correction filter. Meter features fast/slow response time and an analog output (1mV per count) for capturing readings to a recorder. Comes complete with 9-Volt battery.
Specifications
| General | |
|---|---|
| Analog Output | Yes |
| Cosine and Color Corrected | Yes |
| Fast Response | 0.2s |
| Light [Foot Candle] | 200, 2000, 5000Fc |
| Light [Foot Candle] Basic Accuracy | ±5% full scale |
| Light [Foot Candle] Max Resolution | 1 Lux |
| Light [Lux] | 2000, 20000, 50000 Lux |
| Slow Response | 0.4s |
| Additional Details | |
|---|---|
| Certifications | 401025-NIST_S: CE, NIST 401025_S: CE |
| Dimensions | 6.4 × 2.8 × 1.2" (163 × 70 × 30mm) |
| Power | 1 × 9V battery |
| Warranty | 2 years |
| Weight | 8.3oz (220g) |
Resources & Support
Datasheet
Extech 401025 Datasheet
Certification
Extech 401025 Declaration of Conformity
User Manual
401025_UM_en-US
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
