Discontinued

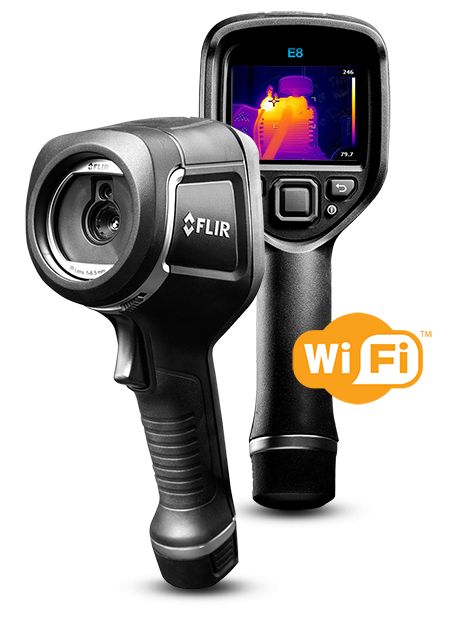

FLIR E8 WiFI

Infrared Camera with MSX® & WiFi

The FLIR E8 with WiFi offers affordable, high-resolution thermal imaging with the added advantage of wireless connectivity. Find hidden electrical faults, mechanical issues, and sources of energy loss thanks to the E8's crisp 76,800 (320 × 240) pixel infrared resolution and MSX® image enhancements. Then, streamline your workload by uploading and sharing images and data over WiFi to the FLIR Tools mobile app.

Best-in-class Thermal Troubleshooting Value
Upload images and data to the FLIR Tools app over WiFi, for instant sharing and reporting.
With its outstanding 76,800 pixel detector and ±2% accuracy, the E8 offers best-in-class image clarity.
A focus-free lens and simple button navigation to on-screen settings makes this camera easy to operate.

Specifications

Highlighted
IR Resolution 320 × 240 pixels
Thermal Sensitivity_NETD <0.06°C (0.11°F) / <60 mK
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Field of view [FOV] 45° × 34°
Image Modes Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
Display 3.0 in. 320 × 240 color LCD
Imaging & Optical
Color palettes Black & white, iron, and rainbow
Detector Type Uncooled microbolometer
Field of view [FOV] 45° × 34°
Focus Focus free
Image Frequency 9 Hz
Image Modes Thermal MSX®, thermal, picture-in-picture, thermal blending, digital camera
IR Resolution 320 × 240 pixels
Minimum Focus Distance 0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging [MSX] IR image enhanced with visible camera detail
Picture_in_Picture IR area on visual image
Screen EST Mode No
Thermal Sensitivity_NETD <0.06°C (0.11°F) / <60 mK
Measurement & Analysis
Accuracy ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Accuracy [Drift] in Screen EST Mode Accuracy (drift): ±0.3°C (±0.5°F)
Camera weight incl battery 0.575 kg (1.27 lb.)
Object Temperature Range –20°C to 250°C (–4°F to 482°F)
Sampling Average in Screen EST Mode Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature
Spot Meter Center spot; box with min./max.
User Interface
Display 3.0 in. 320 × 240 color LCD
Communication & Data Storage
File Formats Standard JPEG, 14-bit measurement data included
Interfaces USB Micro: Data transfer to and from PC and Mac device
WiFi •Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
General
Packaging Size 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)

Accessories

  1. FLIR Tools Mobile App
  2. FLIR Thermal Studio Suite
  1. Tool Belt (T911093)
  1. USB cable, USB-A to USB Micro-B (T198533)
  1. Battery Li-ion 3.6 V, 2.6 Ah, 9.4 Wh (T199422ACC)
  2. Battery Charger (T198531)
  3. Power Supply (T198534)
  4. Car Charger (T198532)
  1. Pouch for FLIR E-Series (T911689ACC)
  2. Pouch with Shoulder Strap (T198529)
