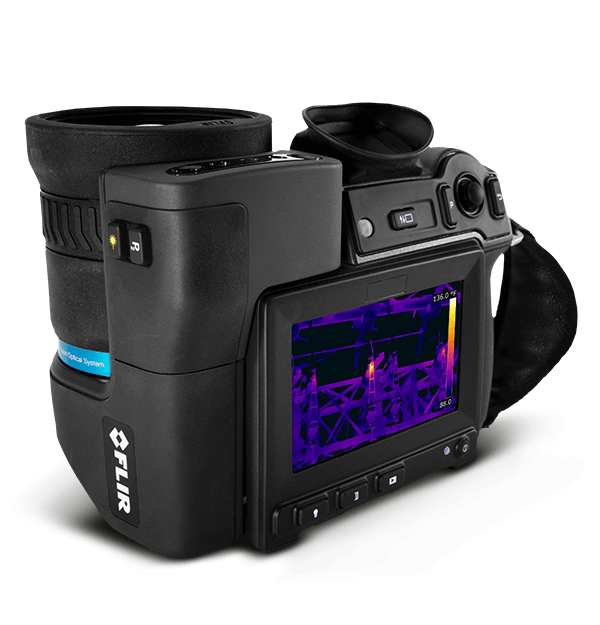

FLIR T1040
HD Thermal Imaging Camera
Product Variations
Get ready for outstanding thermal imaging performance, built on 50 years of experience. With its remarkable range, up to 3.1 M resolution (UltraMax®), and customization to fit your needs, the FLIR T1K (T1040) is designed to be the ultimate tool to streamline your workday, and make you the hero. For the sharpest images, the truest temperatures, the most flexibility — the T1K is the ultimate result of five decades of infrared expertise. The purchase of a T1040 camera includes a 3-month subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
Built For The Experts, By The Experts.
The FLIR OSX™ Precision HDIR optical system offers continuous autofocus and crisp resolution for accurate measurements, even from a distance.
The T1k has a 120° rotating optical block and bright, high-resolution LCD viewfinder, putting any target within comfortable viewing range
From programmable buttons to dynamic focus control to one-click Rapid Reports™, T1k has expert features that make your job easier.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 1024 × 768; up to 3.1 MP with UltraMax |
| Thermal Sensitivity_NETD | <20 mK @ +30°C (+86°F) |
| Field of view [FOV] | FLIR T1040, 12°: 12° × 9° FLIR T1040, 28°: 28° × 21° FLIR T1040, 45°: 45° × 34° |
| Digital Camera | Field of view adapts to the infrared lens |
| Image Modes | Thermal, thermal MSX, picture in picture, digital camera |
| Display | Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Imaging & Optical | |
|---|---|
| 4.3 inch Display | 800 x 480 pixels |
| Auto orientation | Automatic landscape or portrait |
| Automatic Image Adjustment | Standard or histogram based on the image content |
| Built_in Digital Camera | 5 Mpixel with LED light |
| Camera size excl lens [L x W x H] | 167.2 mm × 204.5 mm × 188.3 mm (6.6 in. × 8.0 in. × 7.4 in.) |
| Camera software update | Using USB cable or SD card |
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Pitch | 17 µm |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Digital Camera | Field of view adapts to the infrared lens |
| Digital image enhancement | Adaptive digital noise reduction |
| Digital Zoom | 1–8× continuous |
| Display Type | Capacitive touch screen |
| f number | FLIR T1040, 12°:
1.2 FLIR T1040, 28°: 1.15 FLIR T1040, 45°: 1.1 |
| Field of view [FOV] | FLIR T1040, 12°: 12° × 9° FLIR T1040, 28°: 28° × 21° FLIR T1040, 45°: 45° × 34° |
| Focal Length | FLIR T1040, 12°:
83.4 mm (3.28 in.) FLIR T1040, 28°: 36 mm (1.42 in.) FLIR T1040, 45°: 21.2 mm (0.83 in.) |
| Focus | One shot or manual |
| Image Description | Add short note (stored in the JPEG exif tag) |
| Image Frequency | 30 Hz |
| Image Modes | Thermal, thermal MSX, picture in picture, digital camera |
| Infrared Image | Full color infrared image |
| IR Resolution | 1024 × 768; up to 3.1 MP with UltraMax |
| Laser | Activated by a dedicated button |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Lens Identification | Automatic |
| Manual Image Adjustment | Linear based, possible to adjust level/span/max./min. |
| Minimum Focus Distance | 1.3 m (4.26 ft.) |
| Minimum IR focus distance | FLIR T1040, 12°: 1.3 m (4.26 ft.) FLIR T1040, 28°: 0.4 m (1.32 ft.) FLIR T1040, 45°: 0.2 m (0.66 ft.) |
| Minimum IR–visual alignment distance | FLIR T1040, 12°:
1.3 m (4.26 ft.) FLIR T1040, 28°: 0.4 m (1.32 ft.) FLIR T1040, 45°: 0.5 m (1.64 ft.) |
| Multi Spectral Dynamic Imaging [MSX] | Thermal image with enhanced detail presentation |
| Non_Radiometric IR Video | H.264 to memory card |
| Non_radiometric IR video recording | H.264 to the memory card |
| Non_radiometric IR video streaming | H.264 video using Wi-Fi H.264 video using USB |
| Picture_in_Picture | Resizable and movable infrared area on the visual image |
| Radiometric IR Video | Real-time radiometric recording (RTRR) to memory card |
| Radiometric IR video recording | Real-time radiometric recording (RTRR) to the memory card |
| Radiometric IR video streaming | Real-time radiometric streaming (RTRS) via USB |
| Sketch | Draw on the thermal/digital image or add predefined stamps Separate PC software with extensive report generation |
| Spatial resolution [IFOV] | FLIR T1040, 12°:
0.20 mrad FLIR T1040, 28°: 0.47 mrad FLIR T1040, 45°: 0.80 mrad |
| Spectral Range | 7.5 - 14 µm |
| Thermal Sensitivity_NETD | <20 mK @ +30°C (+86°F) |
| UltraMax | Yes |
| UltraMax Supported | Yes |
| Video Lamp | Built-in LED light |
| Viewfinder | Built-in 800 × 480 pixels |
| Visual Image | Full color visual image |
| Visual Video Recording | H.264 to the memory card |
| Visual Video Streaming | H.264 video using Wi-Fi H.264 video using USB |
| Measurement & Analysis | |
|---|---|
| Accuracy [Drift] in Screen EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
| Area | 5 + 5 areas (boxes and circles) with max./min./average |
| Atmospheric transmission correction | Automatic, based on the inputs for distance, atmospheric temperature, and relative humidity |
| Color alarm [isotherm] | Above/below/interval |
| Difference Temperature | Delta temperature between the measurement functions and the reference temperature |
| Emissivity Correction | Variable from 0.01 to 1.0 or selected from the materials list |
| External Optics and Windows Correction | Automatic, based on the inputs of the window transmission and temperature |
| Measurement Corrections | Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external infrared window compensation |
| Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
| Measurement Presets | No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 |
| Object Temperature Range | -40°C to 2000°C (-40°F to 3632°F) |
| Object temperature range Accuracy | ±1°C (±1.8°F) or ±1% at 25°C for temperatures between 5°C to 150°C ±2°C (±3.6°F) or ±2% of reading at 25°C for temperatures up to 1200°C |
| Optics Transmission Correction | Automatic, based on signals from internal sensors |
| Profile | 1 line profile with max./min. temperature |
| Reference Temperature | Manually set using the difference temperature |
| Reflected apparent temperature correction | Automatic, based on the input of the reflected temperature |
| Sampling Average in Screen EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| Set_up Commands | Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information |
| Spot Meter | 10 |
| Thermal Sensitivity | <0.02°C at +30°C |
| User Presets | The user can select and combine measurements from any number of spots/boxes/circles/profiles/delta |
| User Interface | |
|---|---|
| Display | Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels |
| Languages | Arabic, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Swedish, traditional Chinese, Turkish |
| Text | Add table, select between predefined templates |
| Touch Screen | Yes |
| Voice | 60 seconds (via Bluetooth) stored with the image |
| Power | |
|---|---|
| Battery operating time | >2.5 hours at 25°C (+68°F) and typical use |
| Battery Type | Rechargeable Li ion battery |
| Charging system | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F), except for the Korean market: 10°C to 45°C (50°F to 113°F) |
| Charging Time | 2.5 hours to 90% capacity, charging status indicated by LEDs |
| External Power Operation | AC adapter 90–260 V AC, 50/60 Hz or 12 V from a vehicle (cable with a standard plug, optional) |
| Power Management | Automatic power-off functionality, user configurable between 5 minutes, 20 minutes, and no automatic shutdown |
| Environmental & Certifications | |
|---|---|
| EMC | ETSI EN 301 489-1 (radio) ETSI EN 301 489-17 EN 61000-6-2 (Immunity) EN 61000-6-3 (Emission) FCC 47 CFR Part 15 Class B (Emission) ICES-003 |
| Encapsulation | IP 54 (IEC 60529) |
| Ergonomics | The viewfinder plus the 120° rotating optical block allow you to point the camera in multiple directions while maintaining a comfortable position |
| Humidity [operating and storage] | IEC 60068-2-30 / 24 hours, 95% relative humidity, 25–40°C (77–104°F) / 2 cycles |
| Laser Classification | Class 2 |
| Laser Type | Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) |
| Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 328 FCC Part 15.247 RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Shock | 25 g (IEC 60068-2-29) |
| Storage Temperature Range | –40 to +70°C (–40 to +158°F) |
| Tripod Mounting | UNC ¼"-20 |
| Vibration | 2 g (IEC 60068-2-6) |
| General | |
|---|---|
| Box Contents | Infrared camera with lens Battery (2 each), Battery charger, HDMI-HDMI cable, Hard transport case Large eyecup, Lens cap, Neck strap, Power supply, including multi-plugs USB cable, Standard A to Micro-B Calibration certificate, FLIR Tools+ license card, User documentation on CD-ROM Printed documentation, Bluetooth headset, SD card |
| Compass | Camera direction automatically added to every image |
| Housing material | Magnesium |
| Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
| Weight | 1.9 kg (4.3 lb.) |
