Extech AN200
CFM/CMM Mini Thermo-Anemometer with built-in InfraRed Thermometer

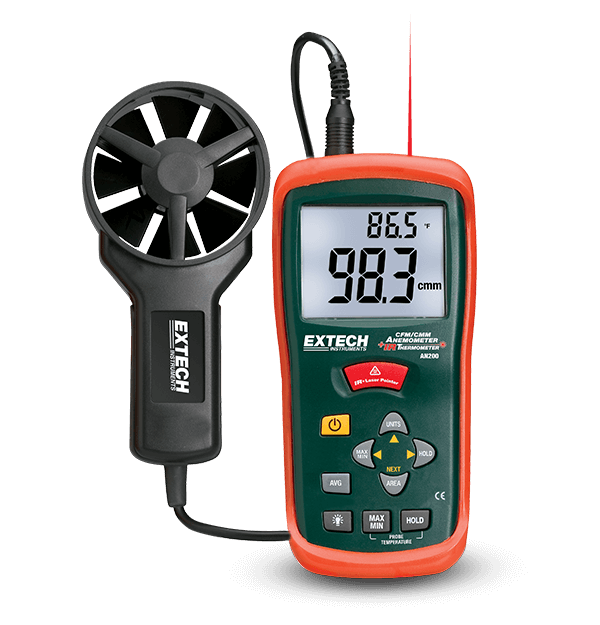

AN200 is a CFM/CMM Mini Thermo-Anemometer with built-in InfraRed Thermometer. Built-in non-contact IR Thermometer measures remote surface temperatures to 500°F (260°C) with 8:1 distance to spot ratio and Laser Pointer. This CFM/CMM Thermo-Anemometer can simultaneously display of Air Flow or Air Velocity plus Ambient Temperature. Easy to set area dimensions (ft² or m²) are stored in the meter’s internal memory for the next power on. Additional features include: 20 point average for Air Flow and 3% velocity accuracy via low friction 2.83 in.D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable. Comes complete with 9-Volt battery, protective rubber holster, and case.
Specifications
| General | |
|---|---|
| Air Velocity [ft_min] | 80 to 5906 ft/min |
| Air Velocity [ft_min] Basic Accuracy | ±3% ft/min |
| Air Velocity [ft_min] Max Resolution | 1 ft/min |
| Air Velocity [km_h] | 1.4 to 108.0 km/h |
| Air Velocity [km_h] Basic Accuracy | ±3% km/h |
| Air Velocity [km_h] Max Resolution | 0.1 km/h |
| Air Velocity [knots] | 0.8 to 58.3 knots |
| Air Velocity [knots] Basic Accuracy | ±3% knots |
| Air Velocity [knots] Max Resolution | 0.1 knots |
| Air Velocity [mph] | 0.9 to 67.2 mph |
| Air Velocity [mph] Basic Accuracy | ±3% mph |
| Air Velocity [mph] Max Resolution | 0.1 mph |
| Air Velocity [m_s] | 0.40 to 30.00 m/s |
| Air Velocity [m_s] Basic Accuracy | ±3% m/s |
| Air Velocity [m_s] Max Resolution | 0.01 m/s |
| Air Volume [CFM] | 0 to 999,999 CMM (m³/min) |
| Air Volume [CFM] Max Resolution | 0.1 |
| Air Volume [CMM] | 0 to 999,999 CFM (ft³/min) |
| Air Volume [CMM] Max Resolution | 0.1 |
| Temperature [Air] | 14 to 140˚F (-10 to 60˚C) |
| Temperature [Air] Basic Accuracy | ±4 °F (2 °C) |
| Temperature [Air] Max Resolution | 0.1˚F/˚C |
| Temperature [IR] Basic Accuracy | -58 to 500˚F (-50 to 260˚) |
| Temperature [IR] Max Resolution | ±9.0˚F/5.0˚C (< -4°F); ±2% of reading or ±4˚F/2°C (> -4°F) |
| Temperature [RTD] | 0.1˚F (< -4°F); 1˚F (> -4°F) |
| Additional Details | |
|---|---|
| Certifications | AN200-NISTL_S: CE, NIST (limited to certain functions) AN200_S: CE AN200-NIST_S: CE, NIST |
| Dimensions | 7 × 2.9 × 1.3" (178 × 74 × 33mm) |
| Power | 1 × 9V battery |
| Warranty | 2years |
| Weight | 1.6lbs (700g) |
