Extech SD500
Humidity/Temperature Datalogger

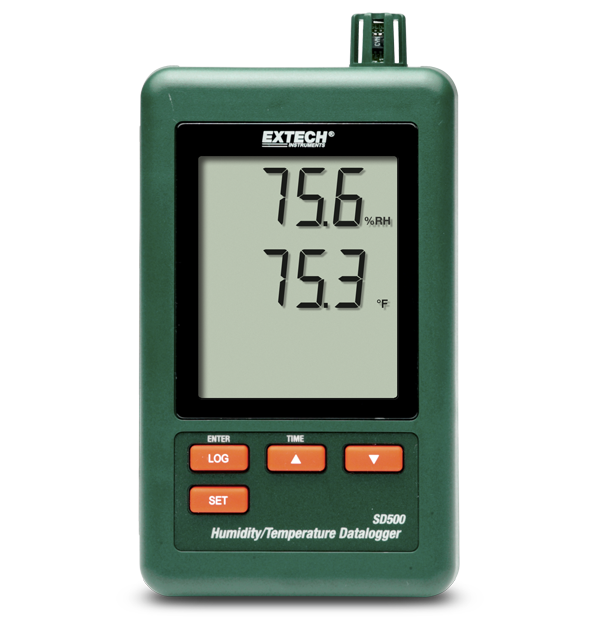

This Humidity/ Temperature Datalogger records data on an SD card in Excel format for easy transfer to a PC for analysis. It features a Dual LCD that simultaneously displays Relative Humidity and Temperature, and a selectable data sampling rate of 5, 10, 30, 60, 120, 300, and 600 seconds. Each stored reading includes a date and time stamp. 10 to 95% Relative Humidity and 32 to 122°F (0 to 50°C) Temperature ranges. Complete with 6 AAA batteries, SD memory card, Universal AC Adaptor, and mounting bracket.
Specifications
| General | |
|---|---|
| Datalogging Interval | 5, 10, 30, 60, 120, 300, 600 seconds or Auto |
| Memory | 20M data using a 2G SD card |
| Relative Humidity | 10 to 90% |
| Relative Humidity Basic Accuracy | ±4% |
| Relative Humidity Max Resolution | 0.1% |
| Temperature [Air] | 32 to 122°F (0 to 50°C) |
| Temperature [Air] Basic Accuracy | ±1.5°F/0.8°C |
| Temperature [Air] Max Resolution | 0.1°F/°C |
| Additional Details | |
|---|---|
| Certifications | SD500-NIST_S: CE, NIST SD500_S: CE |
| Dimensions | 5.2 × 3.1 × 1.3" (132 × 80 × 32mm) |
| Power | 6 × AAA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 9.9oz (282g) |
Resources & Support
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech 407001-PRO Meter to Datalogger Conversion Software and USB Cable
User Manual
Extech SD500 User Manual
Certification
Extech SD500 Declaration of Conformity
User Manual
Extech SD500 User Manual GB
Datasheet
Extech SD500 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
