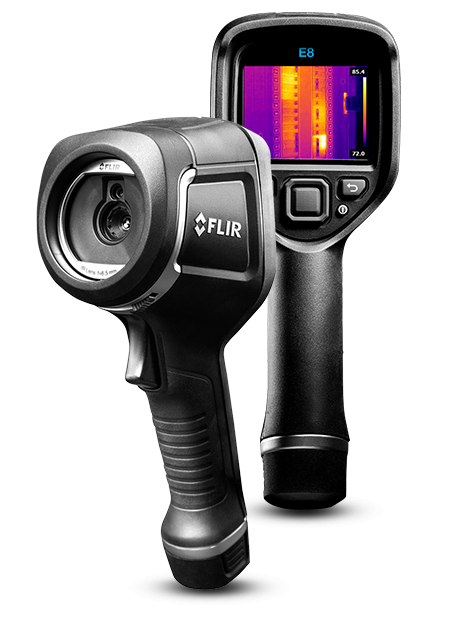

Gain a competitive advantage with the FLIR E8–our affordable, high-resolution thermal imaging camera for electrical, mechanical, and building inspection. Find hidden electrical faults, mechanical issues, and sources of energy loss thanks to the E8's crisp 76,800 (320 × 240) pixel infrared resolution and FLIR Multi-Spectral Dynamic Imaging (MSX®) image enhancements. The E8 is fully automatic, focus-free, and built to last, so you can use it with confidence in even the most rugged environments.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 320 × 240 pixels |
| Thermal Sensitivity_NETD | <0.06°C (0.11°F) / <60 mK |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Field of view [FOV] | 45° × 34° |
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. |
| Display | 3.0 in. 320 × 240 color LCD |
| Imaging & Optical | |
|---|---|
| Color | Black and gray |
| Color palettes | Black & white, iron, and rainbow |
| Detector Type | Uncooled microbolometer |
| f number | 1.5 |
| Field of view [FOV] | 45° × 34° |
| Focus | Focus free |
| Image Frequency | 9 Hz |
| Image Modes | Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera. |
| IR Resolution | 320 × 240 pixels |
| Minimum Focus Distance | 0.5 m (1.6 ft.) |
| Multi Spectral Dynamic Imaging [MSX] | IR image enhanced with visible camera detail |
| Picture_in_Picture | IR area on visual image |
| Screen EST Mode | No |
| Spatial resolution [IFOV] | 2.6 mrad |
| Spectral Range | 7.5–13 µm |
| Thermal Sensitivity_NETD | <0.06°C (0.11°F) / <60 mK |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) |
| Accuracy [Drift] in Screen EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
| Camera size [L x W x H] | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) |
| Camera weight incl battery | 0.575 kg (1.27 lb.) |
| Object Temperature Range | –20°C to 250°C (–4°F to 482°F) |
| Reflected apparent temperature correction | Automatic, based on input of reflected temperature |
| Sampling Average in Screen EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| Set_up Commands | Local adaptation of units, language, date and time formats |
| Spot Meter | Center spot; box with min./max. |
| User Interface | |
|---|---|
| Display | 3.0 in. 320 × 240 color LCD |
| Communication & Data Storage | |
|---|---|
| AC Operation | AC adapter, 90–260 VAC input, 5 VDC output to camera |
| File Formats | Standard JPEG, 14-bit measurement data included |
| Interfaces | USB Micro: Data transfer to and from PC and Mac device |
| WiFi | N/A |
| Power | |
|---|---|
| Charging system | Battery is charged inside the camera or in specific charger. |
| Charging Time | 2.5 hours to 90% capacity in camera. 2 hours in charger. |
| Power Management | Automatic shut-down |
| Environmental & Certifications | |
|---|---|
| Certifications | UL, CSA, CE, PSE and CCC |
| EMC | •WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B |
| Humidity [operating and storage] | IEC 60068-2-30/24 h 95% relative humidity |
| Operating Temperature Range | –15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | N/A |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | –40°C to 70°C (–40°F to 158°F) |
| Vibration | 2 g (IEC 60068-2-6) |
| General | |
|---|---|
| List of Contents | •Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation |
| Packaging Size | 385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in) |
