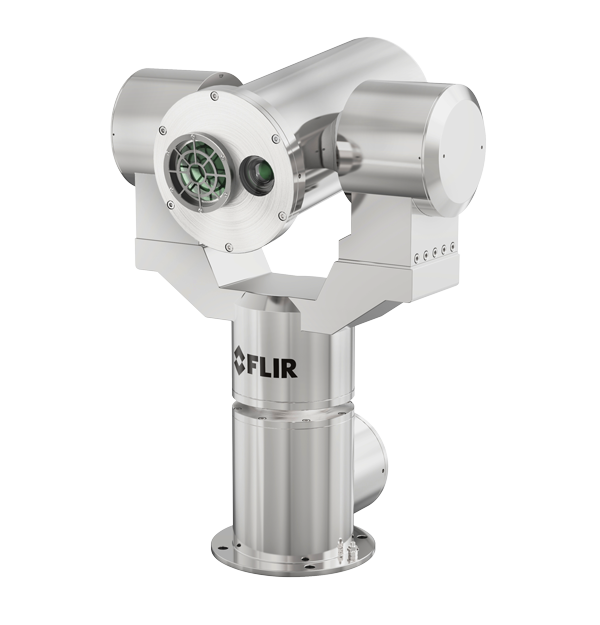

Gx620pt

Pan-Tilt Hydrocarbon/VOC Optical Gas Imaging (OGI) Camera

The Gx620pt pan-tilt hydrocarbon/VOC OGI camera delivers remote, wide-area gas leak detection for oil, gas, and chemical facilities. Combining a high-sensitivity cooled MWIR sensor with an HD 1080p visual camera, it provides precise dual imaging to visualize even the smallest hydrocarbon and VOC emissions. Its 360° continuous pan and wide tilt range enable full-site coverage from a single mounting point, while smooth, maintenance-free motor control ensures long-term reliability. Certified for use in hazardous areas (ATEX, IECEx, ETL), the Gx620pt integrates easily with plant control systems via GigE Vision or ONVIF, helping operators enhance safety, reduce emissions, and meet compliance goals.

Always watching. Always protecting.
High-sensitivity cooled OGI sensor plus HD video give you clear confirmation of leaks, making it easier to validate issues and share evidence across your operations team.
360° continuous pan, wide tilt angles, and optional lenses ensure you don’t miss leaks across large or complex facilities.
With ATEX, IECEx, and ETL certifications and a corrosion-resistant stainless-steel housing, the Gx620pt is engineered to perform reliably in tough industrial conditions.

Specifications

Highlighted
IR Resolution 640 × 512
Thermal Sensitivity_NETD <15 mK at 25°C
Spectral Range 3.2–3.4 μm
Interfaces Ethernet from camera module, or via fibre optic with integral media converter
Imaging & Optical
Automatic Image Adjustment Linear, PE
Detector Type High Operating Temperature (HOT) MWIR T2SLS
f number f/1.59
Field of view [FOV] 6° lens: 6° × 4.8°
14.5° lens: 14.4° × 11.5°
24° lens: 23.6° × 19°
Field of view [FOV]_Focal Length 6° lens: 92 mm 14.5° lens: 38 mm 24° lens: 23 mm
Focus Motorized
Full Frame Rate 30 Hz
Image Modes IR image, High Sensitivity Mode (HSM)
IR Resolution 640 × 512
Minimum Focus Distance 6° lens: 2 m 14.5° lens: 0.5 m 24° lens: 0.3 m
Non_radiometric IR video streaming H.264 or MJPEG over RTSP streaming
Optical Zoom 30X Optical, 8X Digital
Spectral Range 3.2–3.4 μm
Thermal Sensitivity_NETD <15 mK at 25°C
Zoom Digital zoom, 2X, 4X, 8X
Measurement & Analysis
Temperature Range -10°C to 120°C
Communication & Data Storage
Ethernet Direct connection via RJ45 CAT6A cables
Interfaces Ethernet from camera module, or via fibre optic with integral media converter
General
Weight 6 kg to 10 kg depending on model
Environmental & Certifications
Encapsulation IP66 to IEC60529, NEMA 4X
Operating Temperature Range -20°C to 60°C standard (-40°C option on request)
