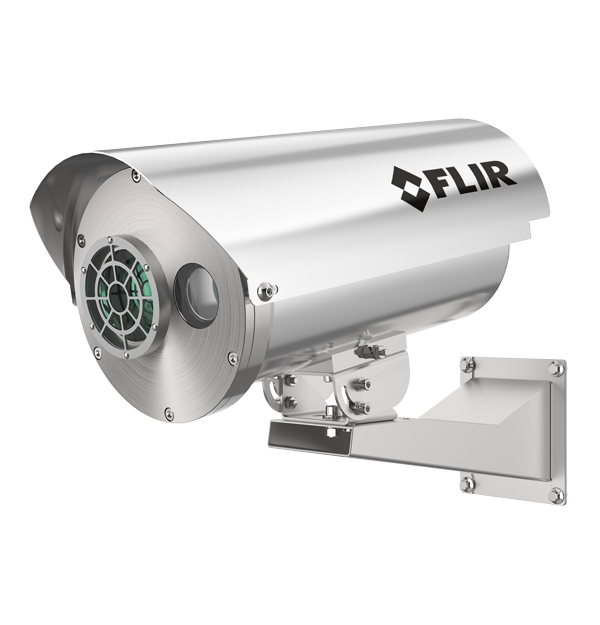

Gx620f
Fixed-Mount Hydrocarbon/VOC Optical Gas Imaging (OGI) Camera
Product Variations
The Gx620f fixed-mount hydrocarbon/VOC OGI camera delivers continuous, automated gas leak detection for oil, gas, and chemical facilities. Using a cooled midwave infrared (MWIR) sensor and HD visual camera, it provides clear visualization of hydrocarbon and VOC emissions in real time. Certified for use in hazardous areas (ATEX, IECEx, ETL), the Gx620f integrates seamlessly with plant monitoring systems via GigE Vision or ONVIF to support 24/7 safety, compliance, and emissions-reduction goals.
Invisible leaks. Instantly visible.
Keep eyes on your most critical assets 24/7. The Gx620f continuously detects hydrocarbon and VOC leaks without sending your team into hazardous zones.
Dual infrared and HD video give you clear confirmation of leaks, making it easier to validate issues and share evidence across your operations team.
With ATEX, IECEx, and ETL certifications and a corrosion-resistant stainless-steel housing, the Gx620f is engineered to perform reliably in tough industrial conditions.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 512 (327,680 pixels) |
| Focal Plane Array (FPA) - Effective pixels | HOT MWIR T2SLS / 3.2–3.4 μm |
| Thermal Sensitivity/NETD | <15 mK at 25°C |
| Spectral Range | 3.2–3.4 μm |
| Interface | Ethernet from camera module, or via fibre optic with integral media converter |
| Imaging & Optical | |
|---|---|
| Automatic Image Adjustment | Linear, PE |
| Color Palettes | Selectable 8-bit |
| Detector Type | High Operating Temperature (HOT) MWIR T2SLS |
| Digital image enhancement | High sensitivity mode (HSM) |
| f-number | f/1.59 |
| Field of view (FOV) | 6° lens: 6° × 4.8° 14.5° lens: 14.4° × 11.5° 24° lens: 23.6° × 19° |
| Focal Length | 6° lens: 92 mm 14.5° lens: 38 mm 24° lens: 23 mm |
| Focal Plane Array (FPA) - Effective pixels | HOT MWIR T2SLS / 3.2–3.4 μm |
| Focus | Motorized |
| Full Frame Rate | 30 Hz |
| Gas Sensitivity [NECL] | CH₄: 16 ppm × m Hydrocarbons (niabara gas mix): 6.4 ppm × m NECL: ΔT 10°C, distance = 1 m |
| Image Frequency | 30 Hz |
| Image Modes | IR image, High Sensitivity Mode (HSM) |
| IR Resolution | 640 × 512 (327,680 pixels) |
| Minimum Focus Distance | 6° lens: 2 m 14.5° lens: 0.5 m 24° lens: 0.3 m |
| Noise Reduction | Auto/manual |
| Non-radiometric IR video streaming | H.264 or MJPEG over RTSP streaming |
| Pan Angle/Speed | NA |
| Radiometric IR video streaming | GigE Vision |
| Spectral Range | 3.2–3.4 μm |
| Thermal Sensitivity/NETD | <15 mK at 25°C |
| Tilt Angle - Speed | NA |
| Visual focal length | 5.2 mm (wide) to 156 mm (tele) |
| Visual Focus | One-shot AF or manual |
| Visual f_number | f/1.3 to f/4.8 |
| Visual Sensor | 1/2.8” Sony CMOS image sensor |
| Visual zoom | 30x optical, 8x digital |
| WDR | Yes, 120 dB |
| Zoom | Digital zoom, 2x, 4x, 8x |
| Measurement & Analysis | |
|---|---|
| Accuracy | ≤100°C ±2°C, >100°C ±2% of reading |
| Ambient Drift Compensation [with factory cal] | Yes |
| DC Voltage | 24 VDC 2.5 A max (optional factory-fitted 100–240 VAC mains to 24 VDC PSU) |
| Object Temperature Range | -10°C to 120°C (14°F to 248°F) |
| Communication & Data Storage | |
|---|---|
| Command and Control | GEV: Genicam; RTSP: Web Interface, REST API |
| Communication Interfaces | Ethernet from camera module or direct Gigabit fiber optic connection via integral fiber optic media converter and SFP module |
| Connector | Ethernet models: Direct connection via RJ45 CAT6A cables Fiber Optic models: direct Gigabit fiber optic connection via integral fiber optic media converter and SFP module |
| Digital I/O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital Inputs | 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V |
| Digital Outputs | 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC) |
| Encoding | H.264 or MJPEG over RTSP streaming |
| Ethernet Communication | ONVIF Ethernet to VMS or Web browser, internal telemetry control for visual camera zoom lens |
| Ethernet Connector Type | RJ45 |
| Ethernet Interface | RJ45 (10/100/1000Base-Tx) or Direct Fiber output via media converter |
| Ethernet Protocols | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, SMTP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTMP |
| Interface | Ethernet from camera module, or via fibre optic with integral media converter |
| General | |
|---|---|
| Pan/Tilt | NA |
| Weight | 13.25 kg to 13.75 kg depending on model |
| Power | |
|---|---|
| Power Consumption | 60 W max (nominal), OGI camera power consumption included |
| Environmental & Certifications | |
|---|---|
| Certifications | RoHS: 2011/65/EU WEEE: 2012/19/EU RED: 2014/53/EU EMC: ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 55032 (emission), EN 55035 (immunity), EN 61000-4-8 Level 5 (magnetic field), EN 61000-6-2, Immunity Industrial Environment, FCC 47 CFR part 15 B, class B (emission), ICES-003 |
| Directives | EMC: 2014/30/EU, WEEE: 2012/19/EU |
| EMC | ETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 55032 (emission), EN 55035 (immunity), EN 61000-4-8 Level 5 (magnetic field), EN 61000-6-2, Immunity Industrial Environment, FCC 47 CFR part 15 B, class B (emission), ICES-003 |
| Encapsulation | IP66 to IEC60529, NEMA 4X |
| Enclosure Material | Stainless Steel AISI 316L |
| Hazardous Location Compliance | Class I, Zone 1, Ex db op pr IIC T4 Gb Class II, Zone 21, Ex op pr tb IIIC T135C Class I, Zone 1, AEx db op pr IIC T4 Gb Zone 21 AEx op pr tb IIIC T135C Db |
| Mounting | Swivel joint for pole top or wall mount bracket |
| Operating Temperature Range | -20°C to 60°C standard (-40°C option on request) |
Resources & Support
Datasheet
FLIR Gx620f Datasheet
Brochure
FLIR OGI Brochure (Optical Gas Imaging)
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
