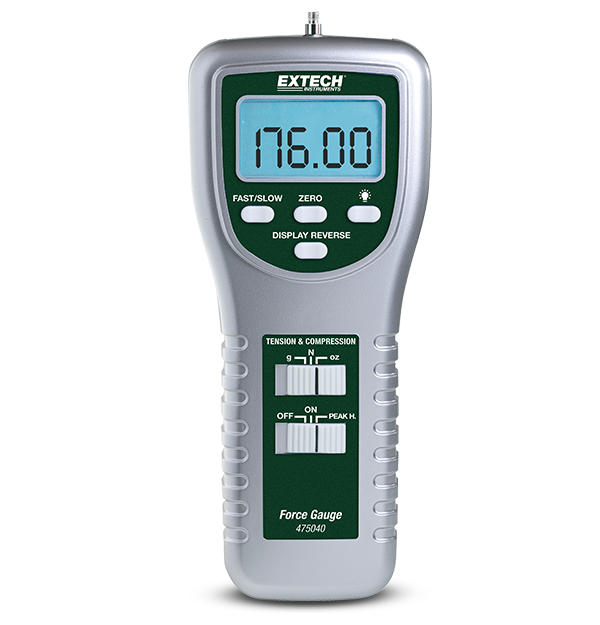

475040 is a Digital Force Gauge with a 5 digit LCD display and peak hold. Exclusive load cell measurement transducer. Over range, low battery and advanced function indicator. 5kg/176oz/49 Newtons measurement capacity. Basic accuracy of 0.4-percent. Complete with tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
Specifications
| General | |
|---|---|
| Force | 176oz, 5000g, 49 Newtons |
| Force Basic Accuracy | ±(0.4%) |
| Force Max Resolution | 0.05oz, 1g, 0.01 Newtons |
| Full Scale Detection | 2.00mm |
| Overload Capacity | 10kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2secs; Slow mode 0.6secs |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Power | 6 × AA (1.5V ) batteries |
| Warranty | 2 years |
| Weight | 1.4 lbs (650g) |
Resources & Support
User Manual
Extech 475040 475044 User Manual GB
Certification
Extech 475040 Declaration of Conformity
User Manual
Extech 475040 475044 User Manual
Datasheet
Extech 475040-475044 Datasheet
