Extech 475044
High Capacity Force Gauge

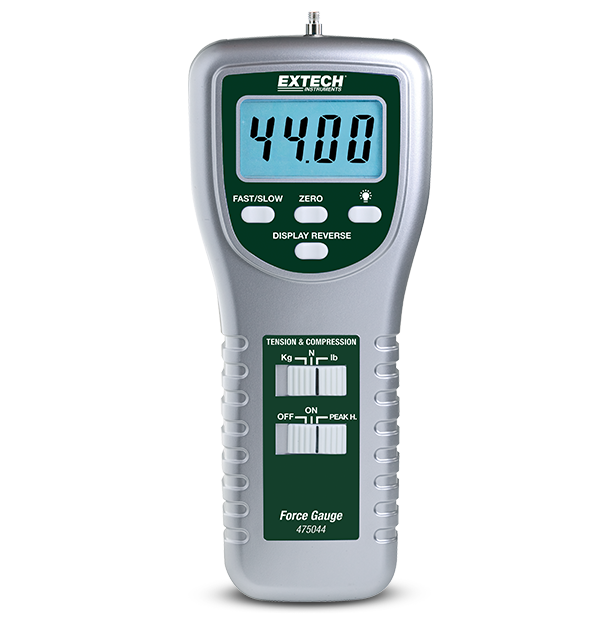

475044 is a High Capacity Force Gauge with a 5 digit LCD display and peak hold. Exclusive load cell measurement transducer. Over-range, low battery and advanced function indicators. 20kg/44.1 lbs/196.1 Newtons measurement capacity. Selectable fast/slow response times. Basic accuracy of 0.5%. Display reverses to match viewing angle. Complete with tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
Specifications
| General | |
|---|---|
| Force | 44lbs, 20kg, 196 Newtons |
| Force Basic Accuracy | ±(0.5%) |
| Force Max Resolution | 0.01lbs, 0.01kg, 0.05 Newtons |
| Full Scale Detection | 2.00mm |
| Overload Capacity | 30kg |
| Transducer Type | Load cell |
| Update Rate | Fast mode 0.2secs; Slow mode 0.6secs |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
| Power | 6 × AA (1.5V ) batteries |
| Warranty | 2 years |
| Weight | 1.4 lbs (650g) |
Resources & Support
User Manual
Extech 475040 475044 User Manual GB
Certification
Extech 475044 Declaration of Conformity
User Manual
Extech 475040 475044 User Manual
Datasheet
Extech 475040-475044 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
