Produto descontinuado
Flir X6980 SLS™
High-Speed LWIR Science-Grade Camera
Product Variations
The FLIR X6980 SLS is an extraordinarily fast longwave IR camera designed for scientists and engineers who need to capture high-speed imagery for accurate thermal analysis and custom radiometric measurements. This thermal imaging camera combines 640 × 512 resolution from the SLS detector with the fastest high-speed frame rates to offer the shorter snapshot speeds and wider temperature bands needed to record crisp stop motion images of high-speed events. With a four-position motorized filter wheel and support for FLIR motorized focus lenses, the X6980 SLS will provide high quality recordings, save time, and mitigate frustration in dynamic acquisition environments.
Capture full 640 × 512 imagery at up to 1004 Hz, with integration times that are 10x shorter than MWIR InSb cameras (ambient temperatures)
Save up to 26,000 frames of data directly to on-camera memory or up to 15 minutes to included 512 GB SSD
Stream thermal data directly to a computer to view, record, and analyze with FLIR Research Studio
Especificações
| Destacado | |
|---|---|
| Resolução | 640 × 512 |
| Pitch do Detector | 25 µm |
| Faixa Espectral | 7.5 µm (lower), 11.5–12.5 µm (upper) |
| Tipo de Detector | Strained layer superlattice (SLS) |
| Número f da Câmera | FLIR X6981 SLS (7.5–12 µm), f/2.5: f/2.5 FLIR X6983 SLS (7.5–12 µm), f/4.1: f/4.1 |
| Faixa Dinâmica | 14-bit |
| NETD | 40 mK typical |
| Taxa de Quadros [Janela Completa] | Programmable: 0.0015 Hz to 1004 Hz |
| Tempo de Integração | Programmable: 270 ns to ~full frame |
| Faixa de temperatura padrão [com óptica correspondente à banda] | -20°C to 350°C (-4°F to 662°F) |
| Faixa de temperatura opcional [com óptica correspondente à banda] | ND1: 250°C–1500°C (482°F–2732°F) ND2: 500°C–3000°C (932°F–5432°F) |
| Filtragem | 4-Position motorized warm filter wheel, standard 1-inch filters, user swappable |
| Foco | Motorized (compatible w/manual) |
| Geração de imagem e óptica | |
|---|---|
| Armazenamento de Imagem na Câmera | RAM (volatile): 16 GB, up to 26,000 frames full frame SSD (user-removable/non-volatile): ~15 minutes of ~800 Hz recording with included 512 GB SSD (more than 2 hours possible with 4 TB SSD purchased separately) |
| Carimbo de Data/Hora da Imagem | Internal IRIG-B decoder clock TSPI accurate time stamp |
| Clock de Pixel | 355 MHz |
| Download de RAM na câmera, gravações SSD | Transfer from SSD through GigE, CXP, or CL to Research Studio v2.1 or higher |
| Faixa Dinâmica | 14-bit |
| Faixa Espectral | 7.5 µm (lower), 11.5–12.5 µm (upper) |
| Filtragem | 4-Position motorized warm filter wheel, standard 1-inch filters, user swappable |
| Foco | Motorized (compatible w/manual) |
| Gravação direta para SSD | Yes, removable 512 GB SSD included |
| Interface da Lente | FLIR FPO-M (4-tab bayonet, motorized) |
| Lentes Disponíveis | Manual (7.5–12 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm Motorized (7.5–12 µm): 17 mm, 25 mm, 50 mm, 100 mm, 200 mm |
| Lentes/Microscópios de Close-up | 1x |
| Modos de Janela Secundária | Flexible windowing down to 32 × 4 (steps of 32 columns, 4 rows) |
| Modos de Leitura | Asynchronous integrate while read, Asynchronous integrate then read |
| Modos de Vídeo | HD-SDI: 720p@50/59.9Hz, 1080p@25/29.97Hz; SD-SDI: 480i@60Hz, 576i@50Hz |
| NETD | 40 mK typical |
| Número f da Câmera | FLIR X6981 SLS (7.5–12 µm), f/2.5: f/2.5 FLIR X6983 SLS (7.5–12 µm), f/4.1: f/4.1 |
| Operacionalidade | 99% typical |
| Paleta | Selectable 8-bit |
| Pitch do Detector | 25 µm |
| Refrigeração do Sensor | Closed cycle rotary |
| Resolução | 640 × 512 |
| Sobreposição | Customizable (ability to toggle off) |

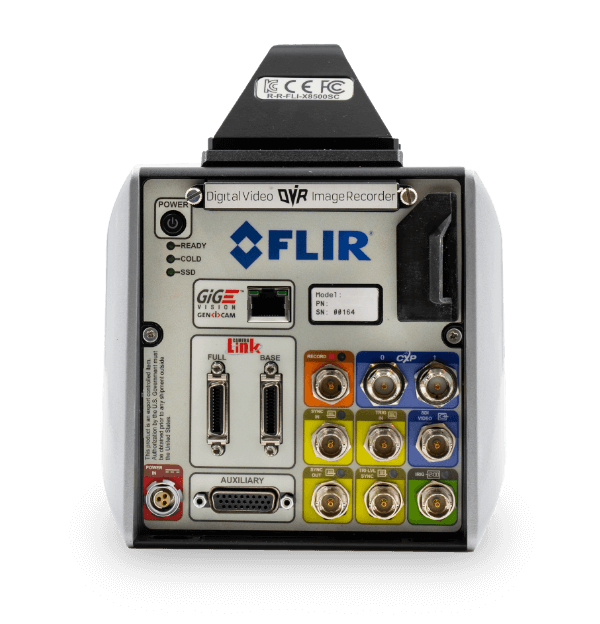

| Streaming de Dados Radiométricos | Simultaneous Gigabit Ethernet (GigE Vision), Camera Link,CoaXPress® 1.1, dual 5 Gb links |
| Taxa de Quadros [Janela Completa] | Programmable: 0.0015 Hz to 1004 Hz |
| Tempo de Integração | Programmable: 270 ns to ~full frame |
| Tipo de Detector | Strained layer superlattice (SLS) |
| Tipo de Leitura | Snapshot |
| Vídeo Padrão | HDMI, SDI |
| Zoom Digital | 1x, Auto (best fit) |
| Medição e análise | |
|---|---|
| Compensação de variação de temperatura [com calibração de fábrica] | Yes |
| Controle Automático de Ganho | Manual, Linear, Plateau equalization, ROI, DDE |
| Faixa de temperatura opcional [com óptica correspondente à banda] | ND1: 250°C–1500°C (482°F–2732°F) ND2: 500°C–3000°C (932°F–5432°F) |
| Faixa de temperatura padrão [com óptica correspondente à banda] | -20°C to 350°C (-4°F to 662°F) |
| Precisão | ≤100°C: ±2°C (±1°C typical), >100°C: ±2% of reading (±1% typical) |
| Comunicação e armazenamento de dados | |
|---|---|
| Modos de Sincronização | Sync In, Sync Out, Tri-Level Sync |
| Potência | |
|---|---|
| Potência | 24 VDC (<50 W steady state) |
| Dados ambientais e certificações | |
|---|---|
| Faixa de Temperatura Operacional | -20°C to 50°C (-4°F to 122°F) |
| Montagem | FLIR X6981 SLS (7.5–12 µm), f/2.5: 2 × 1/4 in. –20 / 1 × 3/8 in. –16 / 4 × #10 –24 / Side: 3x 1/4 in. –20 (each side) FLIR X6983 SLS (7.5–12 µm), f/4.1: 2 × 1/4 in. -20 / 1 × 3/8 in. -16 / 4 × #10 -24 / Side: 3x 1/4 in. -20 (each side) |
Acessórios
- Extender Ring Set, 4 Rings 0.25", 0.50", 0.75", & 1.00", 4-Tab FPO Bayonet (4205079)
- FLIR Cooled Science X-Series + A-Series Camera Universal Lens Support (4210086)
- 1x Microscope Protective Window - MWIR & LWIR (4206654-6)
- FLIR X-Camera Filter Wheel Removal Wrench (C1004.M202)
- FLIR X-Camera Filter Wheel Holders
- FPO Bayonet Plug, 4-Tab FPO Bayonet (4142249)
- FLIR Cooled Science A-Series + X-Series Camera Power Connector (26399-000)
